SPEED GATE
TURNSTILES

GS-4000 Series / Exclusive Line

GateSet Smart Line Smart Line GS-4000 Series Speed Gate Turnstiles requires minimal space with its intelligent design while providing advanced features such as PLC controlled movement provided by servo motor, 8 optical sensors for security features such as anti-tail-gating and anti-pass-back. Thanks to its elegant design and high reliability, GS-4000 Series is the perfect solution for areas where smart use of space and passage speed are equally important.

Functional Highlights
Usage Areas
Access Control

Fee Collection
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants

Featured Characteristics
Elegant

Satin finished 304 Stainless Steel Case, tempered glass top cover and obstacles

Reliable

Servo motor, controlled by Omron PLC providing a long product life with minimum maintenance

Robust

1.2 mm 304 grade stainless steel Case, enhanced with 6 mm thick internal vertical frames

Secure

Anti-Pass-Back and Anti-Tail-Gating with 8 pairs of embedded industrial optical sensors

Flexible

Ease of integration with various access control systems thanks to its control PLC answering all demanded high-end functions

Products in this Series

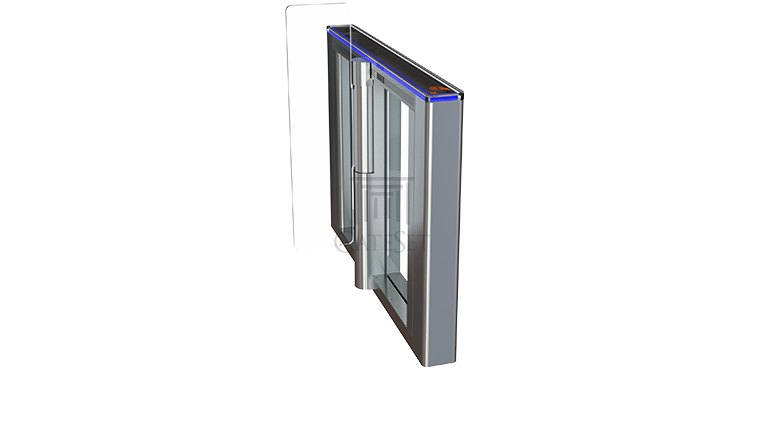

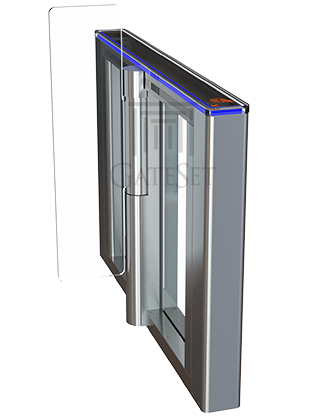

GS-4300

- Standard Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 550 mm wide
Passage together with
corresponding standard wing

GS-4300

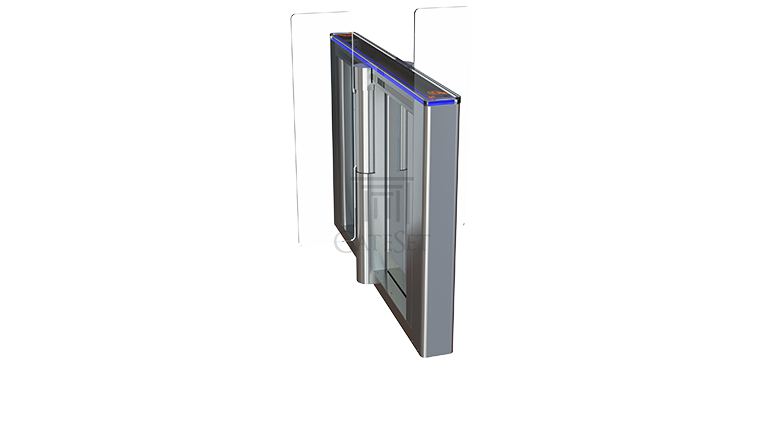

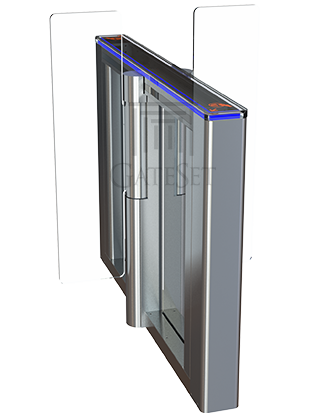

GS-4600

- Standard Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides two 550 mm wide
Passages at each side
together with corresponding
standard wings

GS-4600

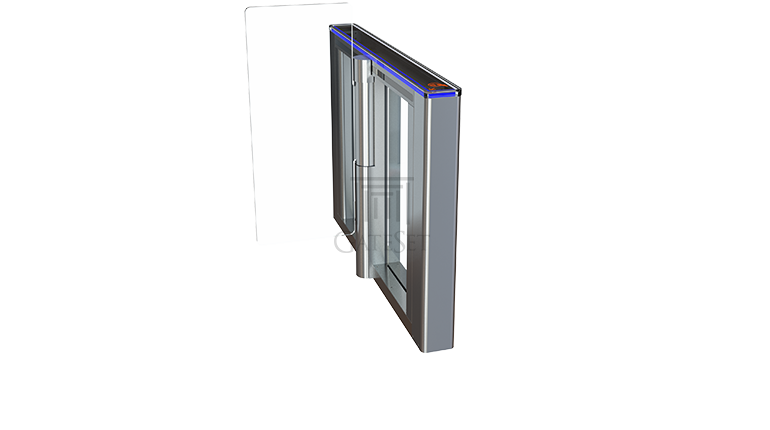

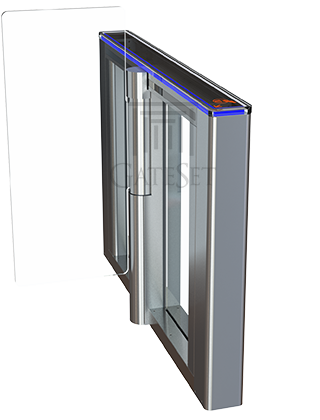

GS-4900

- Disabled Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 900 mm wide
Passage together with
corresponding disabled wing

GS-4900

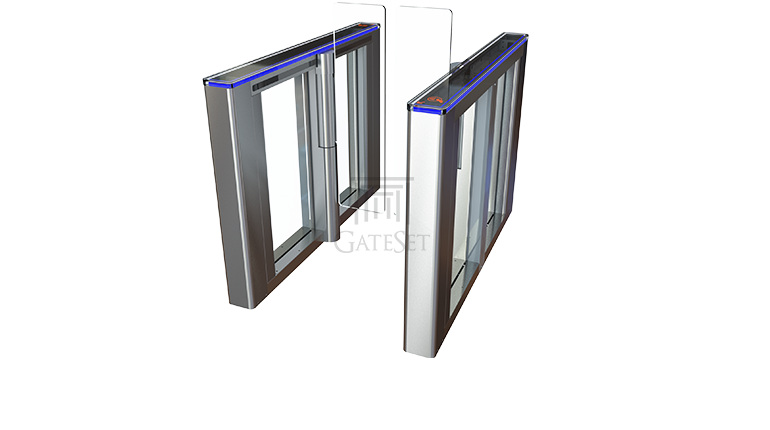

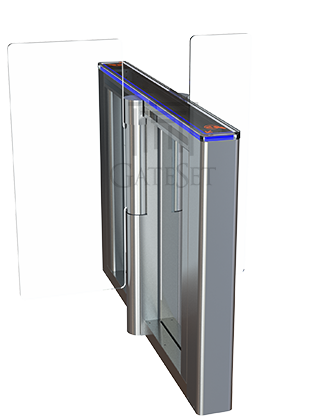

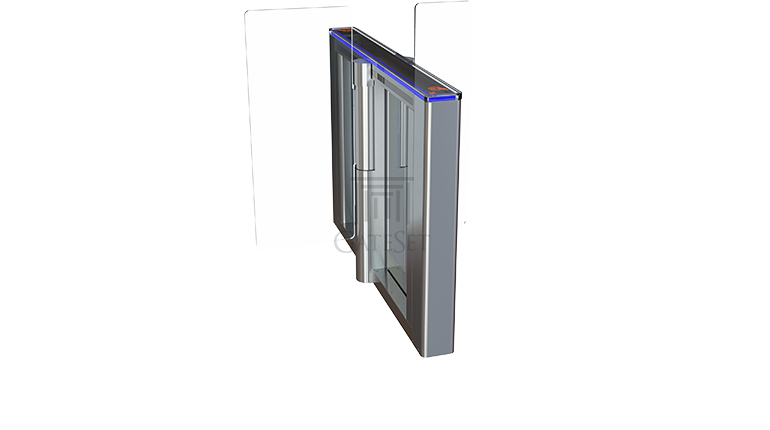

GS-4920

- Hybrid Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides one 550 mm wide
and one 900 mm wide
Passages at each side
together with corresponding
standard and disabled wings

GS-4920
Optional Accessories
DC Power Pack
DC Power Pack

With DC Power Pack, wings can be configured to open automatically in case of power failure

Logo Engraving on Wings
Logo Engraving on Wings

Personalized graphics engraving with laser on obstacles are provided on demand

Stand-Alone Card Reader
Stand-Alone Card Reader

For sites without Access Control System, seamless stand-alone card reader is available

Button Control Unit
Button Control Unit

Designed for ease of operation from reception or supervision desks, remote or wired options

Drawings and Dimensions

* Subject to change depending on design or project needs without prior notice

Technical Specifications
GS-4000 Series
MATERIAL - MAIN BODY  1.2 mm 304 grade stainless steel, satin finishing
MATERIAL - TOP COVER  12 mm Plexiglas Layer for LED Stripes, Finished by 10 mm Tempered Safety Glass (Black Tainted)
MATERIAL - INNER CASE  Reinforced with 6 mm horizontal galvanized metal bars to increase strength
MATERIAL - OBSTACLE  12 mm thick tempered safety glass
SIDE COVERS   Optical sensors are covered with 3mm thick Plexiglas
TREATMENT - OTHER PARTS  All other parts are coated against corrosion
MAIN BODY DIMENSIONS (mm)  200 x 1400 x 1000 (Single Wing), 265 x 1400 x 1000 (Double Wing)
OBSTACLE LENGTH (mm)  250 mm (Standard Wing), 425 mm (Disabled Wing)
PASSAGE WIDTH (mm)  550 mm (Standard Passage), 900 (Disabled Passage)
WING HEIGHT  1200 mm to 1500 mm
OPERATING VOLTAGE  115-240 V AC - 50-60 Hz
POWER CONSUMPTION  400 W (max) for single wing, 800 W (max) for double wings
OPERATING TEMPERATURE  -20°C / + 70°C
OPERATING SPEED Adjustable operation speed from 1 to 3 seconds, 1.5 seconds is recommended for 1200 mm height wing
ACCESS CONTROL Highest end Omron PLC control for granting access. Easy integration with all kind of access control equipment, configured to receive free contact at standard
SENSOR CONTROL 8 point (pairs) IR sensor control for N/O mode, sequential (switching) passage feature for N/C mode.
  The system continuously monitors the status of the corridor and gives alarm in several cases
OCCUPANCY MONITORING When a user occupies the lane without flushing a card, systems gives alarm after an adjustable time
PASSAGE TIME-OUT In instances where the lane is not used when access is granted, the system will give alarm after adjustable time-out duration is exceeded
ENCOUNTERING  When the lane is occupied from the opposite direction of the granted access, the system will give alarm
ANTI-TAIL-GATING When an unauthorized access attempt is made right after a valid access, system will give alarm and block access right after the valid passage (alarm/block access configurations are adjustable)
POSITION DETECTION  Position of the obstacle wings are continuously detected by servo motor
SIDE LED STRIPES Passage indication with side LEDs. Green for passage free, Red for passage blocked, Blue for standby
OBSTACLE MOVEMENT Motorized movement by 220 V AC - 400 W servo motor coupled with 50:1 gearbox
SAFETY SENSORs  Middle safety IR sensors for preventing obstacle - user interference
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
CAPACITY Handling more than 30 passengers per minute
OPERATION SAFETY Electrical and mechanical safety for all components. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURES  The wings are rotated automatically to open position
EMERGENCY OPERATION  Wings automatically rotate to open position in order to ensure safe evacuation during emergency
  Position Sensor feedback is used to determine in which direction the wings will open
INSTALLATION  Ease of installation with compact design
CERTIFICATION  ISO 9001:2015
WARRANTY 2 Years
